Bak-Rak Heavy-Duty Swan to Flange Converter
The HDS2F uses the patent bak-rak clamshell clamped by thick stainless-steel plates with captive stainless 16mm nuts. It is supplied with 12.9 socket head extra high strength bolts in two different lengths to cope with most fitments
An extra Heavy Duty Swan to Flange ([HDS2F] converter to clamp around a swan-neck towball allowing fitment of attachments that need the 2X16mm holes on 90mm centres of a conventional towball fitting. This will include Motorcycle racks, alternative towing eyes and heavy duty carriers.
The maximum loading is 150Kg though this is dependent on the vehicle system capability defined by the vertical max load on the towball plate (S-value). This will only apply to heavy 4WD cars and trucks/vans.

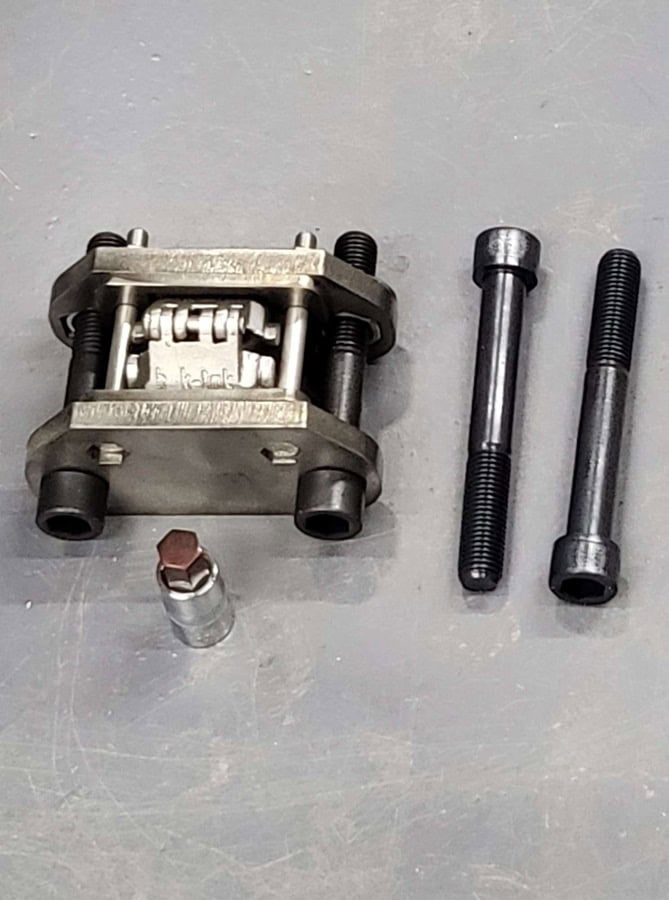

The HDS2F uses the patent bak-rak clamshell clamped by thick stainless-steel plates with captive stainless 16mm nuts. It is supplied with 12.9 socket head extra high strength bolts in two different lengths to cope with most fitments. These bolts are nearly twice as strong as the standard 8.8 HS bolts normally used. It is retained on the towball by two stainless M8 bolts. A 1/2 inch drive socket is provided.
Care needs to be taken if fitting towing attachments to ensure the load goes through the centre-line of the existing towball to ensure the rated towball loading is maintained. This may involve the fitting of a drop-plate to lower the load-line.
